VOGELS PFW 6852 Heavy Duty Television Wall Bracket - Suits Panasonic 85" 4K TV
VOGELS PFW 6852 Heavy Duty Television Wall Bracket - Suits Panasonic 85" 4K TV VOGELS PFW 6852 Heavy Duty Television Wall Bracket - Suits Panasonic 85" 4K TV
VOGELS PFW 6852 Heavy Duty Television Wall Bracket - Suits Panasonic 85" 4K TV
Warranty Period: 5 years Sold as: Single Unit
Overview

Details

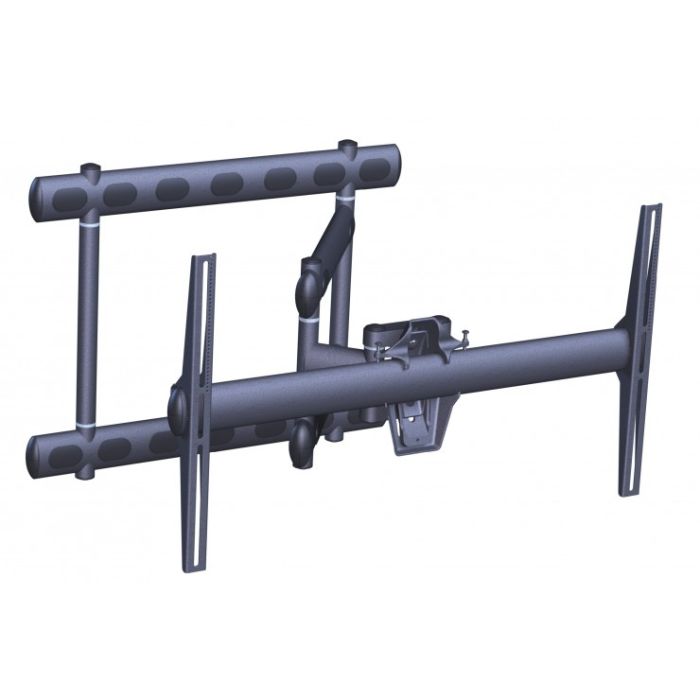

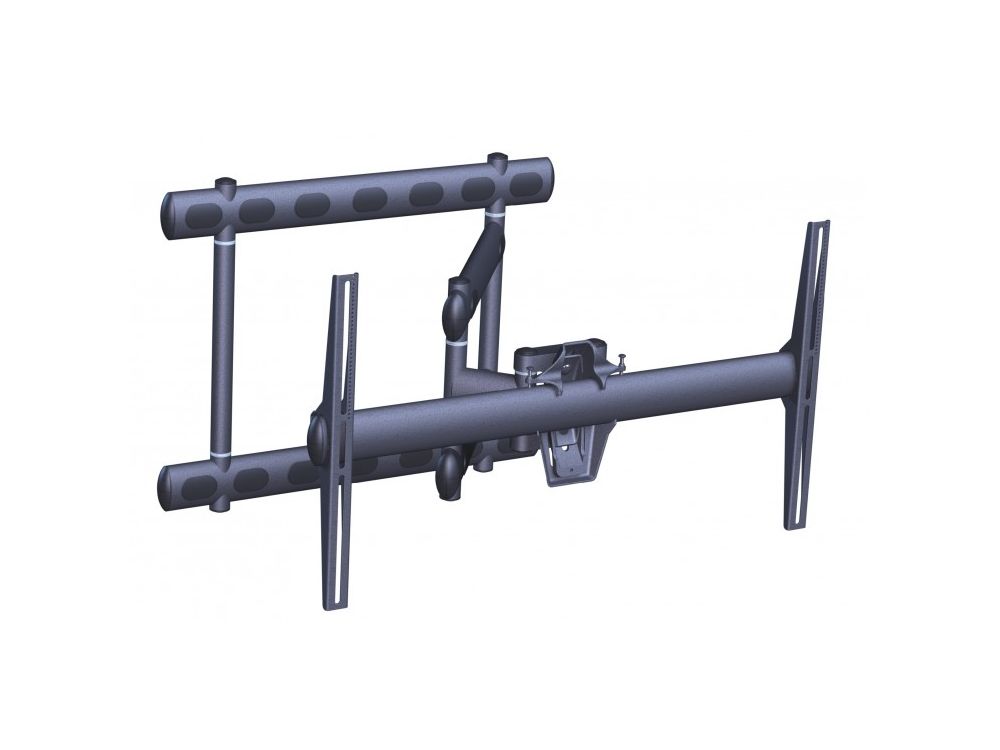

This full-articulation swingout mount for flat-panels up to 136 kg / 300 lbs. Typically fits displays larger than 40 inch or displays with a mounting pattern of 225 x 225mm to 985 x 665mm.
The PFW 6852 extends 66 cm. from the wall and allows up to 90° of swivel to both sides. The swingout arm can be pulled out from the wall and move to the left or right, while providing 10° of tilt.
Features

Details

  • 3 pivot points
  • Extending up to 66 cm
  • Perfect for recessed installations
  • Turn, tilt and reach functions
  • VESA fitment min. 225x225 mm, max. 985x665 mm
Specifications

Details

Min. screen size (inch) 40
Max. screen weight (kg) 136
Hole pattern (mm) Min. 225x225 / Max. 985x665
Turn 180°
Number of pivot points 3
Tilt 10°
Min. distance to the wall (mm) 101
Max. distance to the wall (mm) 660
Main Color Black
Guarantee 5 years
Net weight including packaging (kg) 26
Article number 7368520
Mounting options Single flat display solutions
Max. weight load (kg) 136
