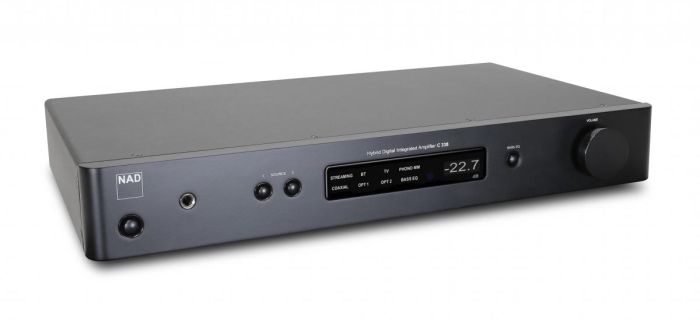

NAD C338 Hybrid Digital Integrated Stereo Amplifier
NAD C338 Hybrid Digital Integrated Stereo Amplifier NAD C338 Hybrid Digital Integrated Stereo Amplifier NAD C338 Hybrid Digital Integrated Stereo Amplifier
NAD C338 Hybrid Digital Integrated Stereo Amplifier
Warranty Period: 2 years Sold as: Single Unit

  As a part of our dealer agreement this product is unavailable for online sale.
  Please CONTACT US for purchasing options.

Overview

Details

Expansive Power and Unprecedented Flexibility

The C 338 ties together all the critical elements of a top performing music system; music sources past and present, while providing a deep reservoir of power that allows your speakers to reveal every nuance of musical detail. This advanced amplifier includes many cutting-edge technological breakthroughs developed by NAD over decades of creating affordable ultra-high performance audio components.

Getting the Basics Right

It is surprising how many seemingly advanced products in the market today often miss many of the most basic requirements for satisfying performance. Low noise circuits, precise volume control action, accurate channel balance, proper input and output impedance characteristics, high overload margins and stability with difficult speaker loads. NAD starts by getting these things precisely right and advances from there. We include an MM Phono stage with precisely accurate RIAA equalization, high overload margins, extremely low noise, and an innovative circuit to suppress infrasonic noise that is present on all LPs – all without affecting bass response. Our line inputs can accommodate all kinds of analogue source components by offering ideal input impedance characteristics with linear ultra-low-noise buffer amplifiers to prevent any sonic degradation caused by inappropriate loading of the source device. We include a separate headphone amplifier with low output impedance and very high output voltage capability – enough to drive even high impedance studio monitor headphones. Low impedance line outputs that can connect to subwoofers extend the versatility of this well thought out amplifier. These are all details you can hear.

Connected and Smart

You can connect instantly to the C 338 with Bluetooth® allowing you to stream music wirelessly from any Bluetooth-enabled device. The high performance aptX® codec is fully supported for true CD-quality sound. Bluetooth can also be used to listen to other sources connected to the C 338 via wireless headphones such as NAD’s own HP70. There is also a control app that allows your smartphone or tablet to control all functions of your NAD. The C 338 includes Wi-Fi and Network Streaming and supports both Google Cast and Spotify Connect. It also provides access to internet radio stations and can serve as an UPnP Client for network streaming from a local NAS library.

Features

Details

  • 50W x 2 Continuous Power into 8 or 4 Ohms
  • Wi-Fi enabled with network streaming of music services, internet radio, and support for Google Cast and UPnP
  • Bluetooth® ADP4 with aptX® supported
  • MM Phono input
  • TV audio input
  • SPDIF coax and optical inputs
  • Subwoofer out
  • Headphone amplifier
  • Bass EQ
  • IR Remote
  • Mobile Control App for smartphone and tablet
Specifications

Details

Continuous output Power into 4 Ω and 8 Ω (Stereo)      50W (at rated THD, 20-20kHz, both channels
IHF Dynamic Power 2 Ω 200W
  4 Ω 150W
  8 Ω 90W
THD 0.01%
IMD 0.01%
Signal/Noise Ratio <-92dB (IHF; A-weighted, 500mV input ref. 1W out in 8 Ω)
  <-104dB (IHF; A-weighted, ref. 50W in 8 Ω, max volume)
Damping Factor >200 (ref. 8 Ω, 50Hz and 1kHtz)
Frequency Response 20Hz-65kHz
Channel Separation 1kHz 85dB
  1kHz 70dB
Sample Rate 192kHz/24bit
Standby Power 0.5W
Inputs Digital: Coax x2, Optical x2
  Analogue: Line In , Moving Magnet Phono Preamp (0.3mV input sensitivity ref. 200mV preout)
Dimensions (W x H x D) 302 x 435 x 71mm (11 7/8 x 17 1/8 x 2 3/4”)
Net Weight TBA
Shipping Weight TBA
* Gross dimensions include feet, extended buttons and rear panel terminals. ** Non-metric measurements are approximate. NAD Electronics will not assume any liability for errors being made by retailers, custom installers, cabinet makers, or other end users based on information contained in this document. Note: Installers should allow a minimum clearance of 55mm for wire/cable management.
