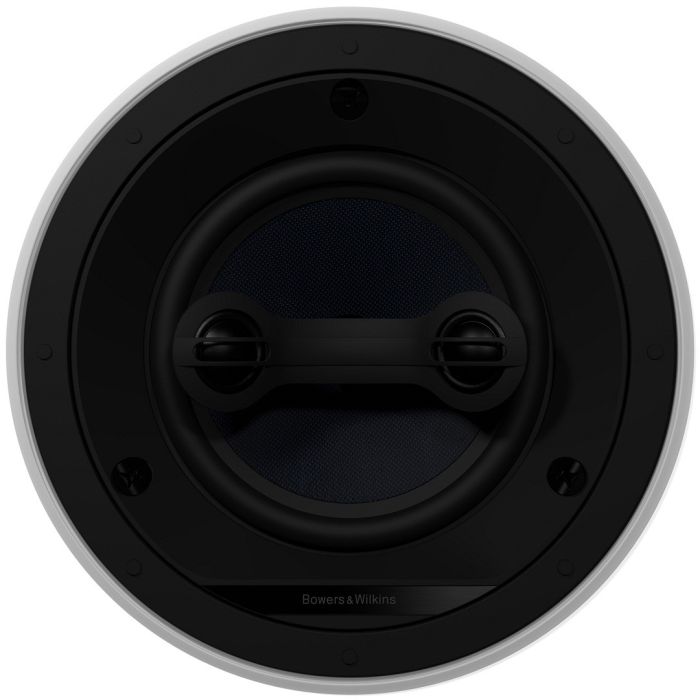

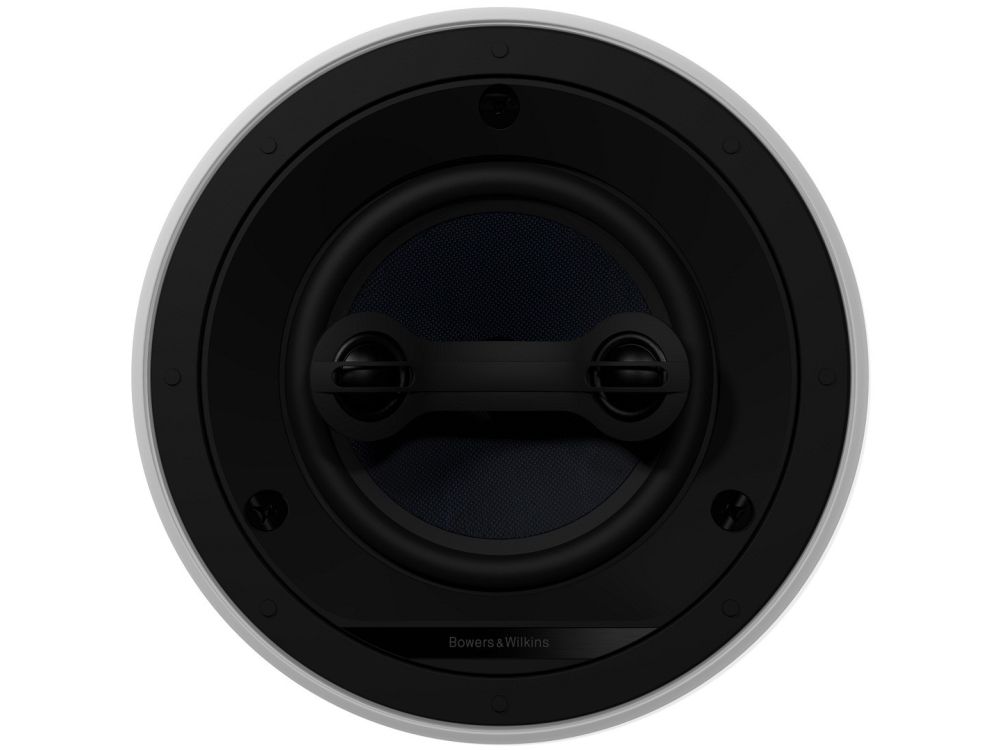

BOWERS AND WILKINS (B&W) CCM663SR 150mm Stereo In Ceiling Speaker (sold per unit)
BOWERS AND WILKINS (B&W) CCM663SR 150mm Stereo In Ceiling Speaker (sold per unit)
Warranty Period: 5 years Sold as: Single Unit
$599.00
Call for Price
Overview

Details

The combination of convenience and performance that is a feature of the entire custom installation range is no better demonstrated than by the CCM663SR ceiling speaker. It marries a woven Kevlar® coned twin voice-coil 150mm (6in) bass/midrange driver with an offset array of two 25mm (1in) soft dome tweeters. Thanks to its highly accurate and natural sound, Kevlar® features on our most advanced high performance hi-fi speakers and it brings the same qualities to the CCM663SR. The twin voice coils and tweeters combine the stereo signal to enable the use of just one ceiling speaker in an installation zone without the loss of one audio channel. The CCM663SR also includes a two-position stereo/surround switch to instantly make the speaker very suitable to be used as a surround channel.

Specifications

Details

Description2-way dual channel in-ceiling system

Drive Units2x ø20mm (1in) soft dome tweeter, 1x ø150mm (6in) blue Kevlar® cone bass/midrange

Frequency Range (-6dB) 48Hz – 30kHz

Recommended Amp Power 25 – 80w (per channel)

Sensitivity SPL (2.83V, 1m) 83dB (per channel), 89dB (both channels driven)

Impedance Nominal (min) 8Ω (4Ω) (per channel)

Frame diameter r240mm (9.5in)

Cut-out diameter 202mm (8in)

Depth behind surface133mm (5.2in)

Protrusion 4mm (0.2in)

Pre-mount Kit C6

Back Box 6C
