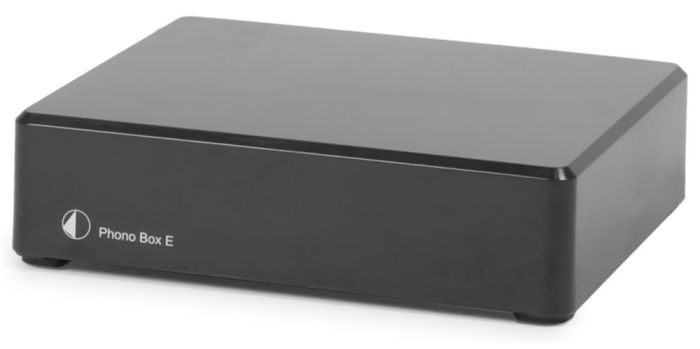

PROJECT Phono Box E Pre Amplifier
PROJECT Phono Box E Pre Amplifier PROJECT Phono Box E Pre Amplifier
PROJECT Phono Box E Pre Amplifier
Warranty Period:2 yearsSold as:Single Unit
Overview

Details

Today, many amplifiers do not have a specific phono cartridge input. Phono Box E is an ideal phono preamplifier for these hifi systems. Phono Box E accepts MM cartridges and offers an audiophile music experience at an entry-level price. Advanced circuitry and SMD construction keep noise and distortion at a surprisingly low level. A built-in internal shielding and an outboard DC power supply leave no risk for external interference. Because of its small casing, Phono Box E can be placed near the turntable. Input and output sockets are gold-plated for preservation of quality. Phono Box E can be connected easily to a line-input (AUX etc) of your amplifier.

Features

Details

• Amplification and RIAA equalisation for MM cartridges

• Design principle inspired by Dr. Sykora

• SMD circuitry

• Special low noise components

• Internal metal shielding

• Small size allows installation close to record player

• Gold plated RCA connection sockets

• Outboard power supply included

Specifications

Details

Input impedance47kohms
Input capacitance120pF
Gain40dB
Output voltage(typically)500mV @ 1KhZ with 5mV input
Noise floor88dB (A weighted)
THD<0,04%
RIAA equalisation accuracy20Hz –20kHz (+0,5/ -,02dB)
Input1 pair RCA socket
Output1 pair RCA socket
Outboard power supply18V/500mA DC; 220 - 240V, 50Hz
Standby power consumption< 1 watt
Power consumption20mA DC
Dimension W x H x D (D with sockets)120 x 32 x 100 (115)mm
Weight250 g without power supply
