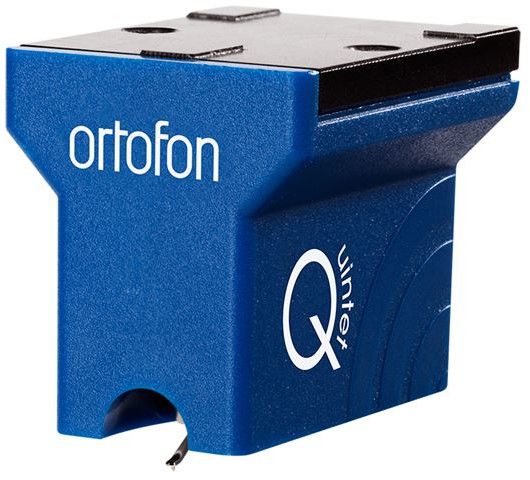

ORTOFON MC Quintet Blue Moving Coil Cartridge
ORTOFON MC Quintet Blue Moving Coil Cartridge ORTOFON MC Quintet Blue Moving Coil Cartridge
ORTOFON MC Quintet Blue Moving Coil Cartridge

Regular Price: $699.00

Special Price $625.00

Warranty Period: 1 year Sold as: Single Unit
Overview

Details

The Quintet Blue is a very homogeneous cartridge whose sound image will tend to more smooth reproduction compared to Quintet Red and moderate dynamic strength compared to Quintet Bronze. It features a Nude Elliptical diamond mounted on an aluminium cantilever.
Features

Details

The soundstage of Quintet Blue is wide open and grandiose straight out of the box. Micro dynamic and ambience will be evident when listening to complex compositions. It reaches a very high degree of definition in the perspective, which is very present. It is true to the music with a tremendous clarity.

Specifications

Details

Technical Data



Output voltage at 1 kHz 5 cm/sec 0.5 mV
Channel balance < 1.5 dB
Channel separation at 1 kHz > 21 dB
Channel separation at 15 kHz > 14 dB
Frequency range at -3 dB 20-25.000 Hz
Frequency response 20-20.000 Hz +/-2.5 dB
Tracking ability at 315 Hz at recommended tracking force *) 70 μm
Compliance, dynamic, lateral 15 μm/mN
Stylus type Nude Elliptical
Stylus tip radius r/R 8/18 μm
Tracking force range 2.1-2.5 g (21-25 mN)
Tracking force recommended 2.3 g (23 mN)
Tracking angle 20º
Internal impedance, DC resistance 7 Ohm
Recommended load impedance >20 Ohm
Cartridge body material ABS/Aluminium
Coil wire material Pure 4-nines copper
Cartridge colour Blue
Cartridge weight 9 g
*) Typical value
