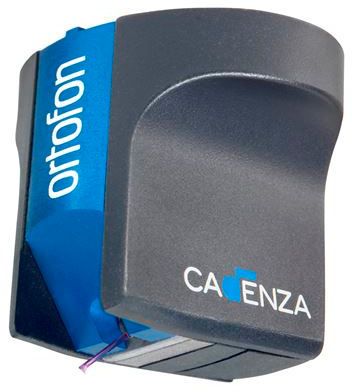

ORTOFON MC Cadenza Blue Moving Coil Cartridge
ORTOFON MC Cadenza Blue Moving Coil Cartridge
Warranty Period: 1 year Sold as: Single Unit
Overview

Details

The Cadenza series

At Ortofon we constantly look for new technology to be used in our products and push the performance of existing technology. Thus we assure the highest level of performance and quality. The Kontrapunkt models and MC Jubilee became market standards and are among our most popular cartridges. Nevertheless Ortofon decided to develope a new cartridge series that is even more ambitious.

By carefully implementing cobalt-iron pole pieces, new improved winding process on the armature, using extruded aluminium housing in the models as well as other changes, we have been able to reveal new possibilities in performing the analogue information. It was also decided to make a more complete range of cartridges, which meant an introduction of a moving coil Cadenza Mono model to support our customers, who have an extended interest in micro groove mono records.

Features

Details

The Cadenza Blue model is using a Nude FG 70 stylus with a very thin ruby cantilever.
The coils are made from 6NX (99.9999 %) pure silver wire.
An improved winding process on the armature allows a better channel balance.

Specifications

Details

Output voltage at 1 kHz 5 cm/sec - 0,5 mV
Channel balance - < 1,2 dB
Channel separation at 1 kHz - > 23 dB
Channel separation at 15 kHz - > 15 dB
Frequency range at -3 dB - 20 Hz - 50 kHz
Frequency response 20 Hz - 20 kHz - +2/-1
Tracking ability at 315 Hz at recommended tracking force *) - 80 μm
Compliance, dynamic, lateral - 12 μm/mN
Stylus type - Nude FG 70 on Ruby cantilever
Stylus tip radius - r/R 6/70

(*) Typical value

Tracking force range - 2,2-2,7 g (22-27 mN)
Tracking force recommended - 2,5 g (25 mN)
Tracking angle - 20º
Internal impedance, DC resistance - 5 Ohm
Recommended load impedance - 50-200 Ohm
Cartridge body material - Stainless steel Aluminium
Cartridge colour - Blue/Black
Cartridge weight - 10,7 g

Reviews/Awards

Details

Hi-Fi News March 2010
Reviewed by Steve Harris

"...if you want a cartridge to give you detail, space, integrity and vitality and fresh insights into every old-favourite LP you put on, the Cadenza Blue will do just fine... "
