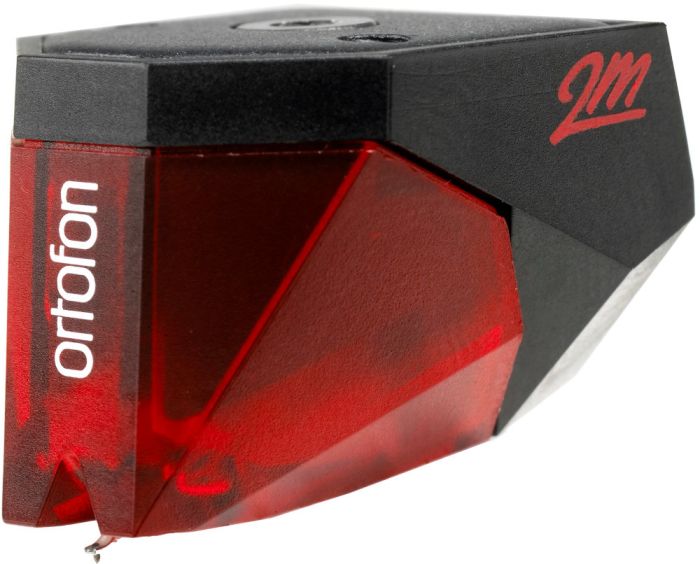

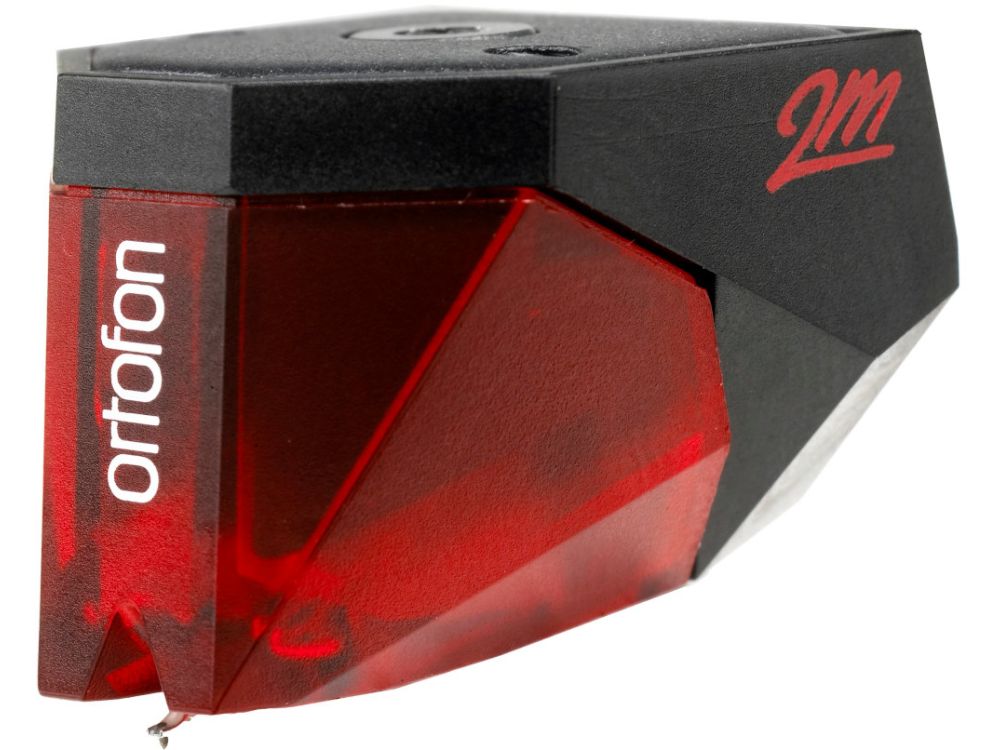

ORTOFON 2M Red Moving Magnet Cartridge

The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound

Special Price $143.00 Regular Price $159.00

The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound The name 2M was selected among several ideas. We wanted a modern name that would be easy to pronounce and to remember, and therefore an alpha numerical name was chosen. 2M means MM, which is the abbreviation for moving magnet. The 2M series of cartridges feature Ortofon’s trademark split pole pins, an invention which enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and Super OM series. We have optimized the design of 2M series for ease of mounting the cartridge, weight and size to fit the most common turntables at the market today. 2M Series provides excellent compatibility in an assortment of playback systems and with a wide variety of phono preamps.

Features
  • Universal mount fitting a wide range of tonearms. NB: on Technics models please use the auxiliary weight which is vital in this case.
  • The headshell body is manufactured from a special compound used for Medical industry, ensures high rigidity while reducing unwanted vibration
  • Elegant hi-tech design
  • Length 52mm. Headshell with a 2M cartridge pre-mounted provides correct Baerwald alignment with Ortofon TA-110/210, likewise with the major part of tonearms with universal mount
  • Weight 16,9g, weight with a 2M cartridge pre-mounted 23g
  • Exclusive plug-and-play solution
Specification

Output voltage at 1kHz, 5cm/sec

  • 5.5mV

Channel Balance at 1kHz

  • 1.5dB

Channel Separation at 1kHz

  • 22dB

Channel separation at 15kHz

  • 15dB

Frequency range at -3dB

  • 20Hz - 22kHz

Frequency Response

  • 20Hz - 22kHz +3/-1dB

Tracking Ability at 315Hz at recommended tracking force

  • 70 µm

Compliance, Dynamic, Lateral

  • 20 µm/mN

Stylus Type

  • Elliptical

Stylus tip radius

  • r/R 8/18 µm

Tracking force range

  • 1.6-2.0g (16-20 mN)

Tracking force, recommended

  • 1.8 g (18 mN)

Tracking angle

  • 20°

Internal impedance, DC resistance

  • 1300 Ohm

Internal inductance

  • 700 mH

Recommended load resistance

  • 47 kOhm

Recommended load capacitance

  • 150-300 pF

Cartridge colour

  • Black and Red

Cartridge mass

  • 7.2g
