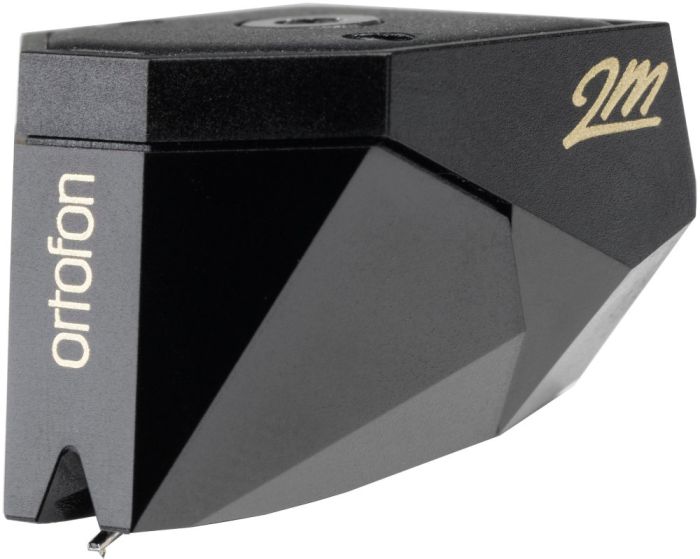

ORTOFON 2M Black Cartridge
ORTOFON 2M Black Cartridge ORTOFON 2M Black Cartridge
ORTOFON 2M Black Cartridge

Regular Price: $999.00

Special Price $890.00

Warranty Period:1 yearSold as:Single Unit
Overview

Details

The 2M Black Series is the MM flagship from Ortofon

The 2M Black is graced with a Shibata diamond stylus – the same diamond as on the acclaimed MC Jubilee. Its slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the most high frequency groove information.

The cartridge body used for the 2M Black is manufactured from a newly-developed Lexan DMX Piano Black, a revolutionary material which ensures high rigidity while eliminating unwanted resonances.

The 2M Black uses a special upgraded engine, featuring split pole pins with a silver plated copper wire.

We have optimized the design for ease of mounting the cartridge, weight and size to fit the most common turntables at the market today. 2M Series provides excellent compatibility in an assortment of playback systems and with a wide variety of phono preamps.

Specifications

Details

Technical data 2M Black / 2M Black Verso


Output voltage at 1000 Hz, 5cm/sec.5 mV
Channel balance at 1 kHz1 dB
Channel separation at 1 kHz26 dB
Channel separation at 15 kHz15 dB
Frequency range at - 3dB20-31.000 Hz
Frequency response20-20.000 + 2 / - 0 dB
Tracking ability at 315Hz at recommended tracking force80 µm
Compliance, dynamic, lateral22 µm/mN
Stylus typeNude Shibata
Stylus tip radiusr/R 6/50 µm
Tracking force range1,4-1,7g (14-17 mN)
Tracking force, recommended1,5 g (15 mN)
Tracking angle20°
Internal impedance, DC resistance1,2 kOhm
Internal inductance630 mH
Recommended load resistance47 kOhm
Recommended load capacitance150-300 pF
Cartridge colour, body/stylusBlack/Black
Cartridge weight7,2 g
Replacement stylus unit2M Black (interchangeable with 2M Bronze)
Stylus protection guard2M Black
